License Plate Recognition #

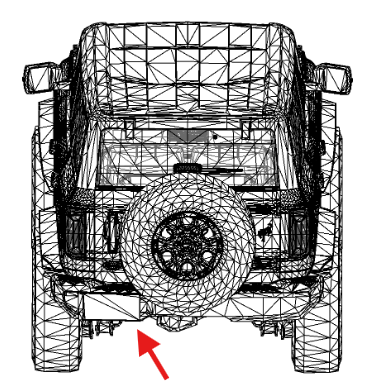

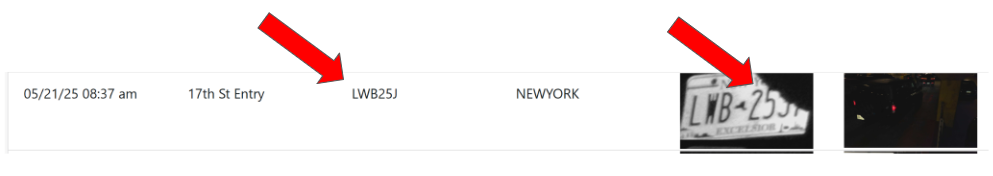

License plate information is captured by LPR cameras mounted to point to the most common angles for plate location, and usually from a passenger-side point of view. In some cases, nevertheless, the view of the vehicle’s license plate can be obstructed by a spare tire or any other installation on the back side of the vehicle.
A solution to this issue is the LPR camera installation centered to point at the back of the vehicle, which provides a clearer view of the License Plate.
Mounting Area #

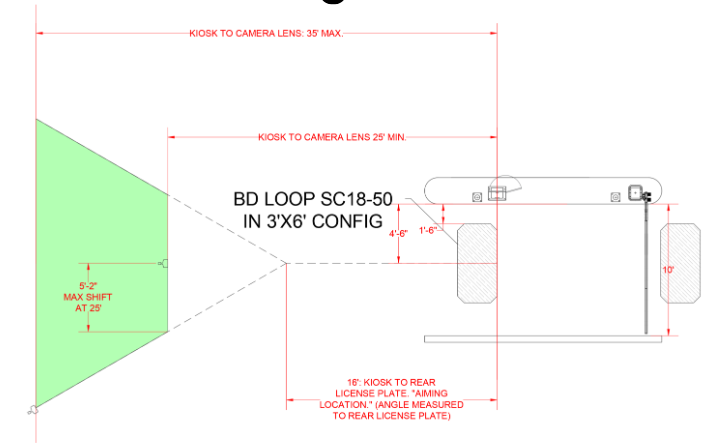

Below is a diagram illustrating the ideal position for LPR cameras in enclosures that facilitate optimal installation.

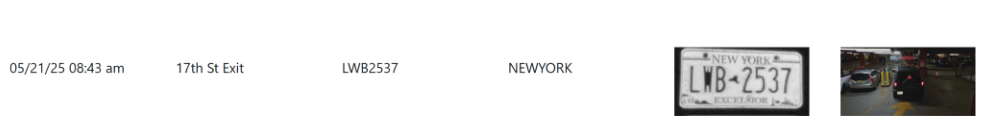

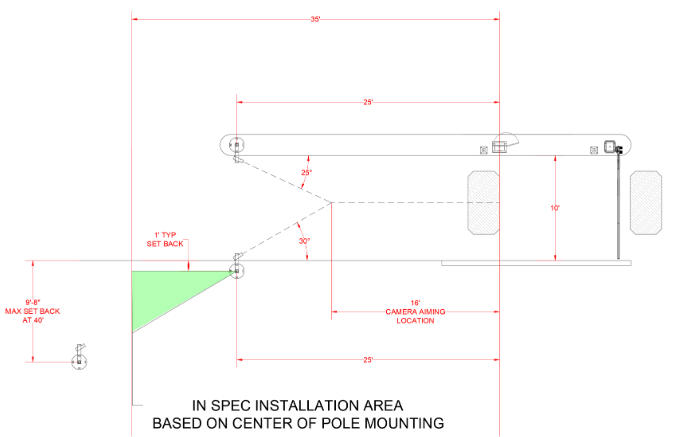

Vision placement on one side can surpass the lane width inconvenience in most cases, shown in the example below with no spare tire:

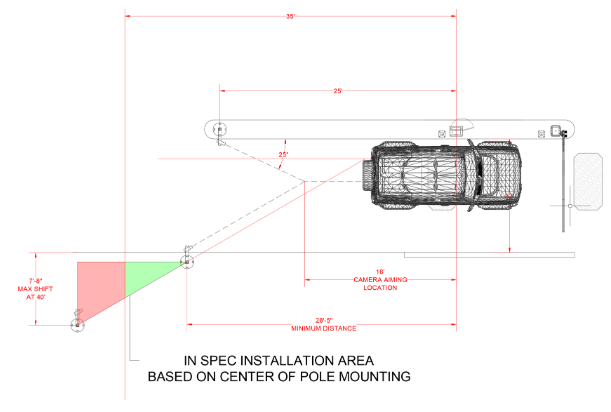

Example of Vision camera placement on a 12’ wide lane for a vehicle with spare tire mount:

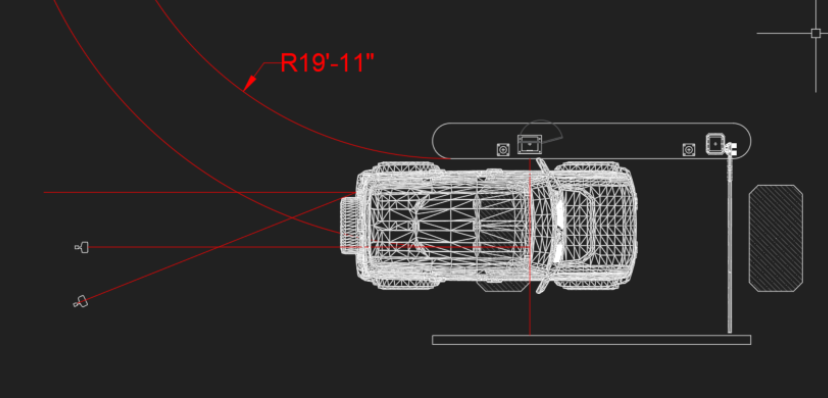

Example for optimal center placement for a vehicle with a spare tire:
